Mountain Hardtails: FatBikes

Mountain:Hardtail:FatBikes

FatBike Hardtails

The Fat Bikes have super wide tires and wheels that are just plain fun to ride.
They are grin generators that float over nearly everything and take you just about anywhere you can imagine.

Featured on the right: The top-of-the-line NightTrain Bullet, it's nearly unstoppable.

NIGHT TRAIN BULLET
Fatbike SRAM X9

Rockshox Bluto, Hydroformed AL, 150/ 190 Axles, Sram Hydraulic
*List $3999 | Read on>>>

STURGIS BULLET
Fatbike SRAM X7

Rockshox Bluto, Hydroformed AL, 150/ 190 Axles, Hydraulic Disc
*List $3299 | Read on>>>

BORIS X9
Fatbike SRAM X9

Precision Forks, Hydroformed AL, Hydraulic Disc
*List $2499 | Read on>>>

LURCH CrMo
CrMo Fatbikes

Precision CrMo Forks Tapered Steerers, CrMo Frames, Disc Brakes, 150/190 Axles
*List $2599 | Read on>>>

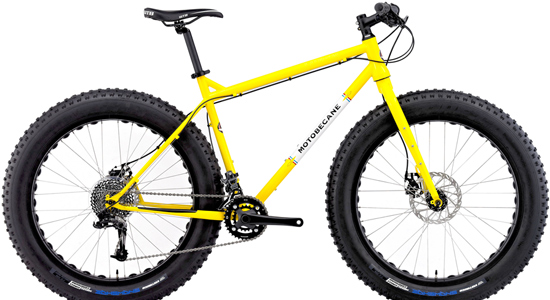

Trail Domination

The Lurch. With Tapered Steerer, Precision CrMo Rigid Forks featuring Tri-fecta Braze-ons. Our trail-specific fatbikes with the Magic Ride of Butted CrMo Steel. The precision frames feature a lowered top tube for extreme trail clearance and are incredibly durable, responsive and comfortable. The 190mm rear QR-axle fits up to 5 inch tires- maybe more? Engineered, FatBike specific frame tubing. These are some of the best handling Fatbikes around. We Know.

Weight / MSRP

35 lbs, approx. 14 inch no pedals/reflectors / $2599*

Sizes / Color(s)

14 inch | 16 inch | 18 inch | 20 inch | 22 inch (see dealers for Available colors)

FRAME	Custom Butted, 4130 CrMo FRAMES, W/DISC MOUNT ONLY, TIG WELD, Rear horizontal dropouts with hub keepers, H2O bosses, Tapered Headtube = L: 36/41/46/51/56CM = 104/112/122/140/160mm
REAR SHOCK	N/A
FORK	26" FAT BIKE, Tapered Steerer = CR-MO 1-1/8" to 1.5" Taper W/0 THREAD.L: 300mm, BLADE: CR-MO STRAIGHT, Axle:150mm, W/ INT'L STD DISC MOUNT + TriFecta Fork BrazeOns NOTE: Fits tapered head tube forks. Some Lockout levers may strike downtube if forks are turned too far
HEADSET	FSA NO. 57 , ORBIT 1.5 ZS ,FOR 1-1/8"/1.5" FORK STEM Internal Alloy Cups, 1-1/8" ACB Upper, 1.5" ACB Lower w/Std 15mm top cover (H2051B) ( 28.6x44/55.95x39.8mm) (H:19.8 mm )
DERAILLEURS	SRAM X7 HDM 2X10 38/36T / SRAM X9 TYPE 2 LONG CAGE 10SPD GRY rear derailleur
SHIFTERS	SRAM PG-1030 10-SPEED 11-36
CRANK / BB	Forged Aluminum SAMOX, 10 SPD, 22x36T AL 175mm FOR 120mm AXLE + 10mm AXLE WASHER x 2 PCS/ EB-2401 BB-100mm
CASSETTE	SRAM PG-1030 10-SPEED 11-36
CHAIN	KMC X-10SL STEEL NP/NP+CL-566R LINK
BRAKES	AVID DB BB7 BKA 20I , MECHANICAL DISC BRAKE FOR INT'L STD DISC MOUNT, 180MM ROTOR Front / 160mm Rear
BRAKE LEVERS	AVID FR5 ALLOY BLACK LEVER W/ALLOY
WHEELS	FRONT: NOVATEC ALLOY FRONT DISC 32H,: 9mm x 150mm , 2 Precision BEARINGS , W/QR , NOVATEC REAR: NOVATEC ALLOY REAR DISC HUB 32H.:10mm x190MM , 4 Precision BEARINGS, W/QR , POLISH ANOD. BLACK
TIRES	VEE RUBBER 26X4.5 Snow Shoe SBK 72TPI Foldable
SEAT / POST / CLAMP	WTB VOLT SPORT / 6061 ALLOY SAND BLAST BLK S/POST W/ALLOY ED BLK HEAD , 27.2 X 400MM / ( 29.8 x28.4 ) ALLOY SAND BLK S/CLAMP W/QR
BAR / STEM / GRIPS	ALLOY 6061 RISE H/BAR ( 9° ) B/CENTER: 31.8mm.R/W:0/700mm. S.B BLK / ALLOY 6061 A-HEAD STEM.EXT:(7°)90/100/110/120MM FOR 39 / 45 / 48 / 53CM ,C/S:31.8x28.6x41mm. / WTB Dual DNA Compounds
PEDALS	N/A
EXTRAS	Free supply of grins and conversation with use of these bikes *Specifications subject to change to comparable specs without notice to meet production demands

Geometry

	Description	14inch	16inch	18inch	20inch	22inch
A	SEAT TUBE, CENTER TO TOP	14inch	16inch	18inch	20inch	22inch
C-2	EFFECTIVE TOP TUBE LENGTH	573mm	583mm	592mm	608mm	626mm
D	CHAIN STAY	447.0mm	447.0mm	447.0mm	447.0mm	447.0mm
E	BB DROP	n/a	n/a	n/a	n/a	n/a
F	FORK OFFSET	51.0	51.0	51.0	51.0	51.0
G	HEAD TUBE ANGLE	70	70.5	70.5	70.5	70.5
H	SEAT TUBE ANGLE	73	72	72	72	72
I	WHEEL BASE	1060	1067	1080	1096	1112
J	STAND OVER HEIGHT*	626	681	725	769	812
K	BB HEIGHT	314mm	314mm	314mm	314mm	314mm
*	Standover on Axis with BB
