Mountain Hardtails: FatBikes

Mountain:Hardtail:FatBikes

FatBike Hardtails

The Fat Bikes have super wide tires and wheels that are just plain fun to ride.
They are grin generators that float over nearly everything and take you just about anywhere you can imagine.

Featured on the right: The top-of-the-line NightTrain Bullet, it's nearly unstoppable.

NIGHT TRAIN BULLET
Fatbike SRAM X9

Rockshox Bluto, Hydroformed AL, 150/ 190 Axles, Sram Hydraulic
*List $3999 | Read on>>>

STURGIS BULLET
Fatbike SRAM X7

Rockshox Bluto, Hydroformed AL, 150/ 190 Axles, Hydraulic Disc
*List $3299 | Read on>>>

BORIS X9
Fatbike SRAM X9

Precision Forks, Hydroformed AL, Hydraulic Disc
*List $2499 | Read on>>>

LURCH CrMo
CrMo Fatbikes

Precision CrMo Forks Tapered Steerers, CrMo Frames, Disc Brakes, 150/190 Axles
*List $2599 | Read on>>>

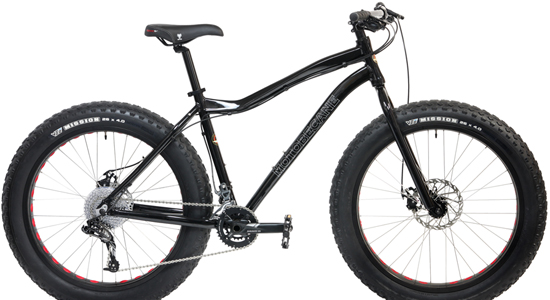

Trail Domination

The Boris. With Precision CrMo Rigid Forks featuring Tri-fecta Braze-ons. Our trail-specific fatbikes. The precision hydroformed Aluminum frames feature a lowered top tube for extreme trail clearance and are incredibly durable, responsive and comfortable. The 170mm rear QR-axle fits up to 4.5 inch tires- maybe more? Engineered, FatBike specific frame tubing. These are some of the best handling Fatbikes around. We Know.

Weight / MSRP

35 lbs, approx. 15 inch no pedals/reflectors / $3999*

Sizes / Color(s)

15 inch | 17 inch | 19 inch | 21 inch (See dealers for more colors. SRAM X7, X5 also available)

FRAME	ALLOY 6061 FRAME, W/DISC MOUNT, TIG WELD, replaceable rear derailleur hanger, H2O bosses, 170mm QR Rear
REAR SHOCK	N/A
FORK	26" 25.4x28.6x30x250L Straight blade CRMO 1 1/8 W/DISC MOUNT ONLY + Trifecta Braze-ons
HEADSET	VP-A42E BLACK W/M-1D ALLOY BLACK CAP
DERAILLEURS	SRAM FD-X7 2x10 HIGH DIRECT MOUNT / SRAM RD-X9 GRAY CAGE 10SPD STGRY rear derailleur
SHIFTERS	SRAM PG-1030 10-SPEED 11-36
CRANK / BB	SRAM X5 22T ALLOY BKx36T ALLOY BKx175MM / SRAM GXP100 100x1.37
CASSETTE	SRAM CS-PG-1030 11-36
CHAIN	KMC X-10 STEEL NP/NP+CL-566R LINK
BRAKES	AVID BB7 DISC BRAKE W/F:180MM,R:160MM ROTOR
BRAKE LEVERS	AVID FR5 ALLOY BLACK LEVER W/ALLOY
WHEELS	26"x32H WEINMANN HL-80 WIDTH 80MM W/BIG HOLES, ALLOY BLACK/ Front 14Gx32Hx135mm alloy BLACK,W/QR / Rear 14Gx32Hx170mm QL205Y alloy BLACK
TIRES	VEE Rubber 26"x4.0 MISSION 120TPI FB F/V
SEAT / POST / CLAMP	WTB SPEED V SPORT SE / 6061 ALLOY POST, 30.9 X 400MM / Superlight machined aluminum with bolt
BAR / STEM / GRIPS	ALLOY 6061 RISE H/BAR ( 9° ) B/CENTER: 31.8mm.R/W:20/700mm. / ALLOY 6061 A-HEAD STEM.EXT:(7°)90/100/110/120MM FOR 39 / 45 / 48 / 53CM ,C/S:31.8x28.6x41mm. / WTB Dual DNA Compounds
PEDALS	N/A
EXTRAS	Free supply of grins and conversation with use of these bikes *Specifications subject to change to comparable specs without notice to meet production demands

Geometry

	Description	15inch	17inch	19 inch	21inch
A	SEAT TUBE, CENTER TO TOP	15inch	17inch	19 inch	21 inch
C-2	EFFECTIVE TOP TUBE LENGTH	583mm	602mm	622mm	640mm
D	CHAIN STAY	467.0mm	467.0mm	467.0mm	467.0mm
E	BB DROP	n/a	n/a	n/a	n/a
F	FORK OFFSET	51.0	51.0	51.0	51.0
G	HEAD TUBE ANGLE	69.5	70	70	70
H	SEAT TUBE ANGLE	73	73	73	73
I	WHEEL BASE	1093	1117	1144	1170
J	STAND OVER HEIGHT*	701	742	779	819
K	BB HEIGHT	310mm	310mm	310mm	310mm
*	Standover on Axis with BB
