Mountain Hardtails: FatBikes

Mountain:Hardtail:FatBikes

FatBike Hardtails

The Fat Bikes have super wide tires and wheels that are just plain fun to ride.
They are grin generators that float over nearly everything and take you just about anywhere you can imagine.

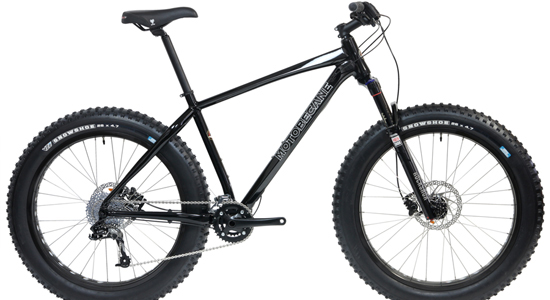

Featured on the right: The top-of-the-line NightTrain Bullet, it's nearly unstoppable.

NIGHT TRAIN BULLET
Fatbike SRAM X9

Precision AL or Rockshox Bluto, Hydroformed AL, 150/ 190 Axles, Sram Hydraulic
*List $3999 | Read on>>>

STURGIS BULLET
Fatbike SRAM X7

Precision AL or Rockshox Bluto Forks, Hydroformed AL, Hydraulic Disc
*List $3299 | Read on>>>

BORIS X9
Fatbike SRAM X9

Precision Forks, Hydroformed AL, Hydraulic Disc
*List $2499 | Read on>>>

LURCH CrMo
CrMo Fatbikes

Precision CrMo Forks Tapered Steerers, CrMo Frames, Disc Brakes, 150/190 Axles
*List $2599 | Read on>>>

World Domination

The NightTrain. With Precision Aluminum Rigid 150mm Thru-axle Forks or Equipped with revolutionary Rockshox Bluto Suspension forks. The precision hydroformed Aluminum frames feature advanced internal cable routing and are incredibly durable, responsive and comfortable. Tapered headtubes are Bluto Ready. The massive 190mm rear thru-axle fits up to 5 inch tires- maybe more? Engineered, FatBike specific frame tubing. One of the best handling Fatbikes around. We Know.

Weight / MSRP

35 lbs, approx. 15 inch no pedals/reflectors / $3999*

Sizes / Color(s)

15.5 inch | 17.5 inch | 19 inch | 21 inch Black or Matte with Clearcoat (see dealers for Available colors)

FRAME	Motobecane Hydroformed Aluminum ALLOY 6061 FRAME, W/DISC MOUNT, TIG WELD, replaceable rear derailleur hanger, H2O bosses, Tapered HEAD TUBE: ALLOY 1-1/8"/1.5" (50x44/62x55.95mm), L: 39/45/48/53CM = 110/120/135/150mm, B.B. SHELL: ALLOY 100MM, ALLOY (34.9xt2.25mm) W/FD BRACKET,. FOR 30.9 S/POST, 190mm Thru-Axle Rear. Internal Downtube cable routings.)
REAR SHOCK	N/A
FORK	Rigid Alumium with Trifecta Brazeons OR ROCKSHOX BLUTO, Steerer tube: ALLOY 1-1/8" to 1.5" Taper W/0 THREAD .CROWN:Forged, AL66 TV aluminum ( 116mm for tire clearance ), STANCHION:32mm, Low friction anodize Fast Black, BLADE: Magnesium, post mount, TRAVEL:120mm,W/15x150 Maxle Lite, Solo Air
HEADSET	FSA ORBIT 1.5 ZS , FOR 1-1/8"/1.5" FORK STEM , Internal Alloy Cups, 1-1/8" ACB Upper, 1.5" ACB
DERAILLEURS	SRAM FD X7 LDM 2X10 S3 36T STGR DUAL PULL / SRAM RD X9 TYPE 2 LONG CAGE 10SPD GRY rear derailleur
SHIFTERS	SRAM SL TRIGGER X7 10SPD BLK
CRANK / BB	SAMOX, 10 SPD, 22x36T, ALLOY. Crank 175mm + 10mm AXLE WASHERS / EB-2401 BB-100mm
CASSETTE	SRAM CS-PG-1030 11-36
CHAIN	KMC X10SL SUPER LIGHT NARROW CN 1/2"x11/128"x112L.W/HOLLOW PIN
BRAKES	SRAM Guide RS HYDRAULIC DISC BRAKE, 180mm ROTOR , GLOSS BLACK
BRAKE LEVERS	SRAM Guide RS HYDRAULIC DISC BRAKE
WHEELS	WEINMANN HL80 ALLOY SINGLE WALL 26" x 73/80xH24, 32H,W/FV BLACK ANOD. W/ BIG HOLES ( 32mm ) / 14g STAINLESS W/BRASS NIPPLE / F/HUB) NOVATEC FRONT DISC 32H, 15mmx150mm Thru-Axle. POLISHED ANOD. BLACK, F/HUB AXLE ALLOY 7075 xM15xP1.5, BLACK ANOD., R/HUB NOVATEC X12MM, REAR DISC 32H. Thru-Axle: 12x190MM, POLISHED ANOD. BLACK
TIRES	VEE RUBBER 26X4.5 VRB370 Snow Shoe SBK 120TPI Silica Comp. Foldable Light weight
SEAT / POST / CLAMP	WTB SPEED V SPORT SE / 6061 ALLOY POST, 30.9 X 400MM / Superlight machined aluminum with bolt
BAR / STEM / GRIPS	ALLOY 6061 RISE H/BAR ( 9° ) B/CENTER: 31.8mm.R/W:20/700mm. / ALLOY 6061 A-HEAD STEM.EXT:(7°)90/100/110/120MM FOR 39 / 45 / 48 / 53CM ,C/S:31.8x28.6x41mm. / WTB Dual DNA Compounds
PEDALS	N/A
EXTRAS	Free supply of grins and conversation with use of these bikes *Specifications subject to change to comparable specs without notice to meet production demands

Geometry

	Description	15.5 inch	17.5 inch	19 inch	21 inch
A	SEAT TUBE, CENTER TO TOP	15.5 inch	17.5 inch	19 inch	21 inch
C-2	EFFECTIVE TOP TUBE LENGTH	595mm	598mm	619mm	646mm
D	CHAIN STAY	460.0mm	460.0mm	460.0mm	460.0mm
E	BB DROP	n/a	n/a	n/a	n/a
F	FORK OFFSET (Bluto)	51.0	51.0	51.0	51.0
G	HEAD TUBE ANGLE	69.5	69.5	69.5	69.5
H	SEAT TUBE ANGLE	73	73	73	73
I	WHEEL BASE	1093	1117	1144	1170
J	STAND OVER HEIGHT*	709	748	775	815
K	BB HEIGHT	319mm	319mm	319mm	319mm
*	Standover on Axis with BB
