Fantom Cross

Road:CycloCross

Power, Precision and Speed

Optimizing the best mix of these factors for each model. Assuring the most bang for buck no matter what size your quads and wallet.

FANTOM CROSS Ti
Pro Ultegra

Titanium, Carbon fork, Ritchey, FSA, 20Spd
*List $4495 | Read on>>>

FANTOM CROSS PRO
Pro Ultegra

Aluminum, Carbon fork, Ritchey, FSA, 20Spd
*List $2195 | Read on>>>

FANTOM CROSS
Expert 105 Tiagra

Aluminum, Carbon fork, Ritchey, SRAM, 18Spd
*List $1895 | Read on>>>

FANTOM CX3
Sport 105 Tiagra

Aluminum, Carbon fork, Ritchey, SRAM, 27Spd
*List $1695 | Read on>>>

UNO
Singlespeed Cross

CroMoly frame and fork, Flip-Flop hub
*List $895 | Read on>>>

ROAD TITANIUM
A Magic Metal

Titanium Road bikes from Pro to Sport. From $3195
*Up to $6995 | Read on>>>

ROAD CARBON FIBER
Light and stiff

Carbon Fiber Road, Pro to Sport. From $2295
*Up to $5995 | Read on>>>

ROAD ALUMINUM+
Aluminum+/-Carbon

Aluminum Road with or w/o carbon stays. From $795
*to $2795 | Read on>>>

TRACK, SINGLESPEED
The Soul of Cycling

Bikes in Steel or Aero Aluminum. From $795
*Up to $1995 | Read on>>>

Cyclocross

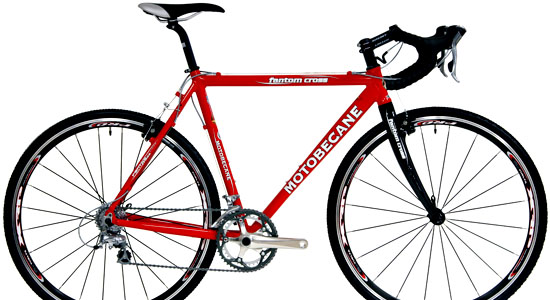

Featured above: The Fantom Cross. Cyclo Cross is Sunday morning bike-race madness. It's all the fun you can stand. Lap after lap around a dirt course you can't entirely ride; You've got to run some of it with your bike on your shoulder. That is what makes the Fantom Cross Pro such a versatile bike - it has to be fast, durable, light and capable in nearly all conditions and THAT makes it the perfect bike for everyday, fast, durable riding in most any condition.

Weight / MSRP

19.2 lbs, approx. 49cm no pedals/reflectors / $1895*

Sizes / Color(s)

49cm | 52cm | 54cm | 56cm | 58cm | 61cm | 64cm / RaceRed with Clearcoat

FRAME	Aluminum alloy with Bi-Axle down tube, Integrated HeadTube, Double water bottle mounts Gallery of pics (Note: Motobecane USA is using 7005 and 6000 series frames to meet production demands. Both are engineered to be virtually identical in weight and performance)
REAR SHOCK	n/a
FORK	Motobecane CARBON FIBER Cross fork (AL or CrMo STEERER 1.125 inch - As available)
HEADSET	Cane Creek, 1.125" Threadless w/ Sealed Bearing
DERAILLEURS	Shimano Tiagra 4500 (18 Spd total) front and Shimano 105 rear
SHIFTERS	Shimano Tiagra 4500
CRANK / BB	TruVativ Elita Cross GXP External Bearing Bottom Bracket, CNC'D 38/48T or 39/48T (As Available) Chainrings, Polished Silver (Note: Some are equipped with comparable FSA 46/36T cranksets (Black) - As Available) (170mm 49-52cm / 172.5mm 54-56cm / 175mm 58-61cm)
CHAIN	Shimano CN-HG73, 9-speed
CASSETTE	SRAM PG950, 9-speed, 12-26T
BRAKES	Tektro Oryx Cantilever black finish
BRAKE LEVERS	Shimano Tiagra 4500 Brake/Shift STI 9 speed (18 gears total) AND Tektro RL570 Cross Top Levers on handlebar top section
WHEELS	Veulta XRP Pro with precision bearing and radial/cross lacing
TIRES	Kenda Kwick Cross, 700 x 32c or 30c (As Available) + presta tubes / Presta Valve tubes
SEAT / POST	UltraLite Racing with Cro-Moly rails / Superlite Micro Adjust alloy, 250mm, 27.2
BAR / STEM	Ultralite Alloy Road, VariButted Alloy / Ritchey Logic Road Comp Threadless +/- 6 degree
PEDALS	n/a
EXTRAS	*Specifications subject to change to comparable specs without notice to meet production

Geometry

	Description	49cm	52cm	54cm	56cm	58cm	61cm	64cm
A	SEAT TUBE, CENTER TO TOP	49cm	52cm	54cm	56cm	58cm	61cm	64cm
C-2	EFFECTIVE TOP TUBE LENGTH	525	529	548	560	570	590	610
D	CHAIN STAY	430	430	430	430	430	430	430
E	BB DROP	67.0	67.0	67.0	67.0	67.0	67.0	67.0
F	FORK OFFSET	45.0	45.0	45.0	45.0	45.0	45.0	45.0
G	HEAD TUBE ANGLE	71.0	71.5	72.0	72.0	72.0	72.0	72.0
H	SEAT TUBE ANGLE	75.0	74.5	73.0	73.0	73.0	72.0	72.0
I	WHEEL BASE	1002	1012	1019	1022	1030	1040	1060
J	STAND OVER HEIGHT	752	772	785	795	814	841	871
K	BB HEIGHT	283	283	283	283	283	283	283
