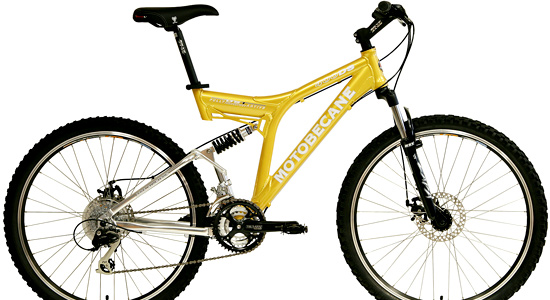

TrailTested | 400DS | Shimano Alivio | 24 Speed | Front Lockout

This is the 400DS. From the 400DS to the 700DS, all feature our Fully Active DST single pivot design. Provides up to three inches of bump-eating travel. Rear suspension travel is matched to XC and Trail conditions. Front and Rear lockout is available on certain models.

Weight / MSRP

32.5 lbs, approx. SML no pedals/reflectors / $895*

Sizes / Color(s)

SML | MED | LRG / MetalYellow or RevolutionRed front triangle/Polished Aluminum rear with Clearcoat

FRAME	Oversized Bearing Pivot, Custom Formed TIG Welded 7005 Aluminum Front and Rear Triangle, replaceable rear derailleur hanger
REAR SHOCK	KS260 Adjustable CoilOver (Coil over an oil damping cartridge, adjustable pre-load)
FORK	SR Suntour VC2 Long Travel Adjustable Suspension with adjustable preload and Lockout switch (mounted on fork crown) ; 1.125" threadless steerer tube
HEADSET	Cane Creek Internal Sealed caged ball bearing VP A42E 1.125 inch
DERAILLEURS	Shimano Alivio front derailleur, Shimano Alivio rear derailleur, SGS Long Cage
SHIFTERS	Shimano CIDeck PLUS STEF50-8R 8 Speed Trigger Shifters (24 total gears)
CRANK / BB	TruVativ IsoFlow Aluminum 175mm arms, Triple 22/32/42T (TruShift Rings)/ Sealed Cartridge
CHAIN	KMC 8 Speed
CASSETTE	Shimano HG 12-28T 8 speed
BRAKES	Tektro IO Mechanical disc with 160mm Rotors
BRAKE LEVERS	Shimano STEF50-8R
WHEELS	WeinMann SP17 double wall 6061 T6 aluminum, Formula DiscSpecific Aluminum (black) Rubber Sealed Cage Ball Bearing mechanism hubs, stainless steel spokes
TIRES	WTB Velociraptor Blackwall 26 x 2.1 tires, Presta Valve tubes.
SEAT / POST / CLAMP	WTB Speed V with comfort groove / Skye Aluminum Micro-Adjust 350x27.2mm / Aluminum with QR lever
BAR / STEM / GRIPS	Skye Comp Aluminum Riser 25.4mm / Skye Comp Aluminum 25.4mm clamp / WTB Dual Compound
PEDALS	ATB Beartrap platform
EXTRAS	*Specifications subject to change to comparable specs without notice to meet production

Geometry

	Description	Small	Medium	Large
A	SEAT TUBE, CENTER TO TOP	16"	18"	20"
C-2	EFFECTIVE TOP TUBE LENGTH	21.5"	22.5"	23.5"
D	CHAIN STAY	16.5"	16.5"	16.5"
E	BB DROP	n/a	n/a	n/a
F	FORK OFFSET	38.0	38.0	38.0
G	HEAD TUBE ANGLE	71.0	71.5	71.5
H	SEAT TUBE ANGLE	73.0	73.0	73.0
I	WHEEL BASE	42	42.75	43.5
J	STAND OVER HEIGHT	26.75	28.5	30.5
K	BB HEIGHT	11.75	11.75	11.75
