Conquer the Trail

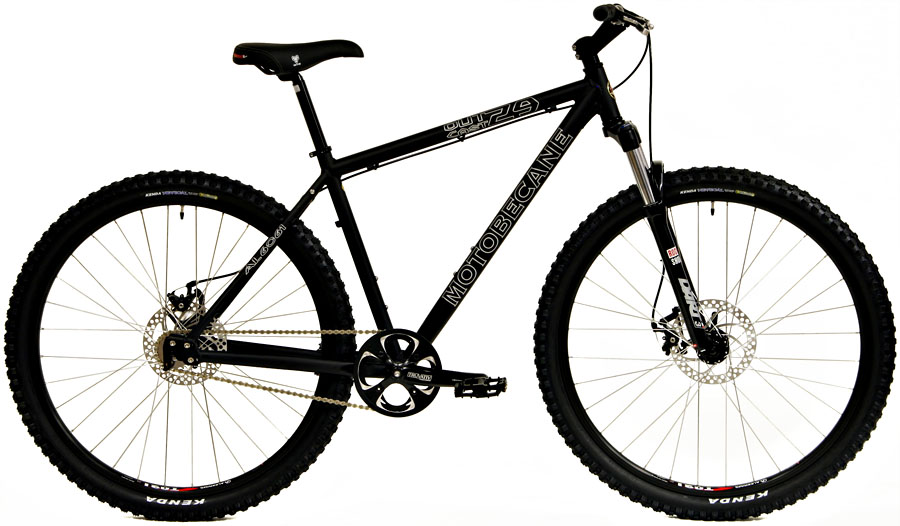

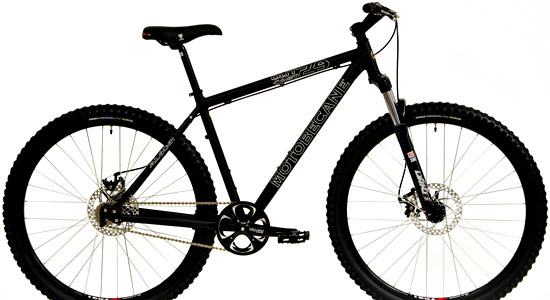

The Outcast 29 Singlespeed. Our most versatile 29er Singlespeed hardtail in aluminum. The Outcast 29 can be converted to a multi-speed drivetrain via its innovative sliding dropouts. The precision butted MOTO29X Aluminum frame is incredibly durable, responsive and comfortable. Engineered with 29er specific frame tubing.

Weight / MSRP

29.5 lbs, approx. 15 inch no pedals/reflectors / $995*

Sizes / Color(s)

15 inch | 17 inch | 19 inch | 21 inch MatteBlack or MatteRed

FRAME	6061 MOTO29X Aluminum with TrailTuned PowerStay Design, DualProfile Downtube with reinforced Gusset, 2x H2O bosses, Rear IS Disc Brake tabs, Tri-Bolt Machined-Aluminum Horizontally-Adjustable rear dropouts (135mm rear, 9-speed compatible)
REAR SHOCK	N/A
FORK	Rockshox Dart 3 for 29er, Hydraulic rebound damping adjust, 100mm Travel + Crown-mounted TurnKey Lockout Lever
HEADSET	TH Threadless Labyrinth Sealed Caged Ball Bearing, 1.125 inch
DERAILLEURS	n/a (Frame has 135mm rear spacing, compatible with multi-speed drivetrains)
SHIFTERS	n/a
CRANK / BB	TruVativ IsoFlow Aluminum 175mm with bash guard, 42T Chainring (see your dealer for 33T ring option)/ TruVativ sealed 68x118mm, Square taper axle
CASSETTE	20T cog + Lock ring, 9-speed to 1-speed spacer
CHAIN	KMC Z51
BRAKES	Tektro IO Disc Brake (No Choice), 180mm rotors Fr/Rr
BRAKE LEVERS	Tektro Aluminum, RS-360A
WHEELS	Alex TN21 for 29", Black anodized Aluminum, stainless steel spokes
TIRES	Kenda Nevegal 29x2.2, wire bead, Presta Valve tubes
SEAT / POST / CLAMP	WTB SpeedV Sport SE / Ritchey Comp Black Finish Aluminum Mountain 27.2mm / Superlight aluminum with QR lever
BAR / STEM / GRIPS	Medium Rizer 20x600mm Black Finish Aluminum 6061 T6, 25.4 clamp / Black Finish Aluminum threadless 25.4mm clamp / WTB DualCompound
PEDALS	Mountain Platform, 9/16" Boron Steel axles
EXTRAS	*Specifications subject to change to comparable specs without notice to meet production demands

Geometry

	Description	15 inch	17 inch	19 inch	21 inch
A	SEAT TUBE, CENTER TO TOP	15 inch	17 inch	19 inch	21 inch
C-2	EFFECTIVE TOP TUBE LENGTH	22.8inch	23.6inch	24.0inch	25.1inch
D	CHAIN STAY	17.8inch	17.8inch	17.8inch	17.8inch
E	BB DROP	n/a	n/a	n/a	n/a
F	FORK OFFSET	46.0	46.0	46.0	46.0
G	HEAD TUBE ANGLE	71.0	71.5	72	72
H	SEAT TUBE ANGLE	73.5	73.0	73.0	73.0
I	WHEEL BASE	1074	1088	1108	1129
J	STAND OVER HEIGHT	736	785	807	837
K	BB HEIGHT	n/a	n/a	n/a	n/a
