Full Suspension

Mountain:Full Suspension

More Cush = More Fun

When the going gets rough, get some more cush.

FANTOM 29 4by4 FS
DynaSys 30 XTR

Rockshox Reba 29, Avid Hydraulic
*List $4999 | Read on>>>

FANTOM TEAM DS
XC Race XTR

Rockshox Reba Team 120, Active4Bar, Avid Hydraulic
*List $3995 | Read on>>>

FANTOM PRO DS
All Mountain XTR

Rockshox Reba Race 120, Active4Bar, Avid Hydraulic
*List $3595 | Read on>>>

FANTOM ELITE DS
All Mountain XTR

Rockshox Recon 351, Active4Bar, Avid Hydraulic
*List $3195 | Read on>>>

FANTOM COMP DS
All Mountain XT

Rockshox Tora 302, Active4Bar, Avid Hydraulic
*List $2495 | Read on>>>

FANTOM TRAIL DS
All Mountain SLX

Rockshox Dart Lockout, Active4Bar, Avid Disc
*List $1995 | Read on>>>

400/500/600/700 DS
General Trail

Suspension Fork, Active DS Pivot+Lockout, Mech Disc
*Up to $1295 | Read on>>>

Conquer the Trail

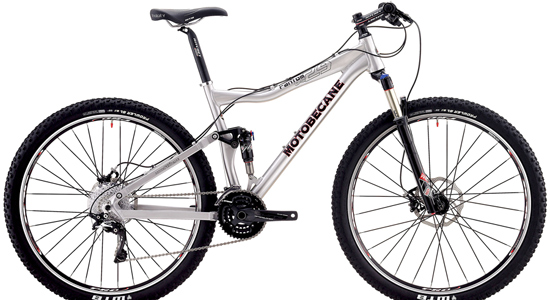

Trail Tested in Leadville, Pisgah and the Sierras; this Fantom 29er Full Suspension is purpose-built with parts that have seen the podium countless times. Incredible Roll-over-everything 29er wheels in a full-suspension machine, it crushes trails like a Monster Truck yet with turn on a dime handling. Our Active4B adjustable rear suspension linkage provides up to 4 inches of plush travel. Front and rear suspension have available lockout/platform via advanced MotionControl/FloodGate.

Weight / MSRP

27.7 lbs, approx. 42cm/SM no pedals/reflectors / $4999*

Sizes / Color(s)

SM (16.5"/42cm) | MD (18.5"/47cm) | LG (20.5"/52cm) Brushed Aluminum with Clearcoat

FRAME	Hydroformed Butted and Geometric Multishaped Aluminum tubes,1 set H2O Bosses (Small has no bosses), Four Bar Rocker Arm. Gusseted SL 7005 Aluminum (Disc Brake Equipped) Super Smooth Sealed Cartridge Bearings at critical pivots, replaceable rear derailleur hanger(Customers are reporting there is Room for 2.35" tires)
REAR SHOCK	ROCKSHOX MONARCH RT3 AIR REAR SHOCK EYE TO EYE:165mm W/External rebound and 3 position Floodgate switch
FORK	ROCKSHOX REBA RL 29", TAPERED STEERER ALLOY 1-1/8" to 1.5" Taper, 42/47/52CM=193/203/203MM, post mount disc brake, 15mm x 110mm with Maxle Lite QR AXLE, TRAVEL:100mm, External rebound, low speed compression to 'Lock' with internal Floodgate
HEADSET	FSA Orbit XLII precision bearing headset
DERAILLEURS	Front Derailleur Shimano FD-M980, XTR TOP-SWING DUAL-PULL 34.9MM BAND-TYPE Rear Derailleur Shimano RD-M980, XTR SGS 10-SPEED TOP-NORMAL SHADOW DESIGN Shimano CS-M771-10,DEORE XT, 10-SPEED 11-13-15-17-19-21-24-28-32-36T
SHIFTERS	Shimano XTR, SLM980 SHIFT LEVER, (30 gears total)
CRANK / BB	FSA 10SPD Afterburner MegaExo, 42x32x24T, 175mm / FSA BB-7000-73 (CN LINE: 50.0mm) MEGAEXO BB
CHAIN	KMC X10 SL
BRAKES	Avid Elixir 9 CARBON HYDRAULIC DISC BRAKE, W/POST DISC MOUNT (front), BLACK, 180mm ROTOR
BRAKE LEVERS	Avid Elixir 9 Carbon hydraulic (carbon levers)
WHEELS	Vuelta XRP PRO 29" ALLOY BLK RIM,F/R:28/32H W/FV W/EYELET, MaxleLight 15mm front
TIRES	WTB Prowler SL 2.1 29", 29x2.1" ( 52/52 ) DNA Compound, 60tpi Casing, Folding Bead, presta valve tubes (Plenty of room for most 2.35" tires)
SEAT / POST	WTB Rocket V saddle, CrMo-rails, Black / Ritchey PRO Aluminum 31.6x350mm
BAR / STEM	Ritchey PRO ALLOY( 2014 ) FLAT H/BAR(5°) B/CENTER:31.8mm.R/W:0/ / Ritchey PRO 4Axis aluminum, 31.8mm ) EXT:(6°)110/120/130mm FOR 42/47/52CM
PEDALS	N/A
EXTRAS	Rockshox PopLoc Remote option fork *Specifications subject to change to comparable specs without notice to meet production

Geometry

	Description	42cm	47cm	52cm
A	SEAT TUBE, CENTER TO TOP	420.0	470.0	520.0
C-2	EFFECTIVE TOP TUBE LENGTH	575	595	615
D	CHAIN STAY	455.0	455.0	455.0
E	BB DROP	35.0	35.0	35.0
F	FORK RAKE	39.0	39.0	39.0
G	HEAD TUBE ANGLE	70	70	70
H	SEAT TUBE ANGLE	74.0	74.0	74.0
I	WHEEL BASE	1096	1127	1139
J	STAND OVER HEIGHT	747.3	790.2	827.2
K	BB HEIGHT	280.0	280.0	280.0
L	HEAD TUBE LENGTH	110	120	120
