CycloCross Bicycles

Road:CycloCross

Power, Precision and Speed

Optimizing the best mix of these factors for each model. Assuring the most bang for buck no matter what size your quads and wallet.

FANTOM CROSS Ti
Pro Ultegra +DISC

Titanium, Carbon fork, Ritchey, Avid, 22Spd
*List $4995 | Read on>>>

FANTOM CROSS PRO
Pro Ultegra

Aluminum, Carbon fork, Ritchey, FSA, 20Spd
*List $2195 | Read on>>>

FANTOM CROSS
Expert 105 Tiagra

Aluminum, Carbon fork, Ritchey, SRAM, 18Spd
*List $1895 | Read on>>>

FANTOM CX3
Sport 105 Tiagra

Aluminum, Carbon fork, Ritchey, SRAM, 27Spd
*List $1695 | Read on>>>

UNO
Singlespeed Cross

CroMoly frame and fork, Flip-Flop hub
*List $895 | Read on>>>

ROAD TITANIUM
A Magic Metal

Titanium Road bikes from Pro to Sport. From $3195
*Up to $6995 | Read on>>>

ROAD CARBON FIBER
Light and stiff

Carbon Fiber Road, Pro to Sport. From $2295
*Up to $5995 | Read on>>>

ROAD ALUMINUM+
Aluminum+/-Carbon

Aluminum Road with or w/o carbon stays. From $795
*to $2795 | Read on>>>

TRACK, SINGLESPEED
The Soul of Cycling

Bikes in Steel or Aero Aluminum. From $795
*Up to $1995 | Read on>>>

Cyclocross

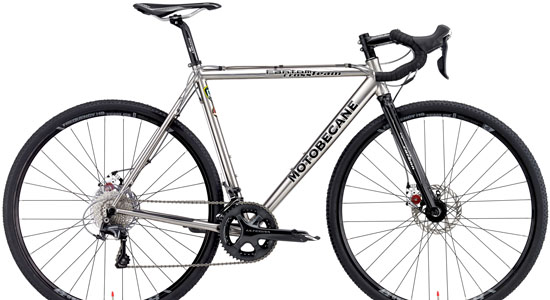

Featured above: The Fantom Cross Team Titanium. Vari-Butted Titanium 3/2.5 Geometrically Enhanced tubing, Integrated HeadTube, 2xH2O bottle mounts (brazeons), Shoulder friendly top tube with underside flat section. Complete with a plush riding, sweet handling High Modulus 3K Carbon fiber Monocoque fork (disc brake capable). Equipped with professional grade Shimano 11 Speed Technology Ultegra 6800 11-Speed. Ultegra Crankset, Ritchey PRO Bar, Stem and Seatpost with a Vuelta Disc Wheelset.

Weight / MSRP

19.5 lbs, approx. 49cm no pedals/reflectors / $4995*

Sizes / Color(s)

49cm | 52cm | 54cm | 56cm | 58cm | 61cm | 64cm / BrushedTitanium with Clearcoat

FRAME	Vari-Butted Titanium 3/2.5 Geometrically Enhanced tubing, Integrated HeadTube, 2xH2O bottle mounts (brazeons), Shoulder friendly top tube with underside flat section. S-bend seatstays, replaceable derailleur hanger, Fender mounts, REAR RACK BRAZE-ONS (IS Disc brake tabs, 130mm rear spacing)
REAR SHOCK	n/a
FORK	Motobecane Alloy Crown Carbon ( 3K Weave ) Blade 700C, Alloy (1-1/8")W/0 Thread L:49/52/54/56/58/61cm = 177/187/197/197/217/247mm. Crown: 45mm, Blade: Carbon Muscle Shape Design W/Disc Mount. W/45mm Offset
HEADSET	FSA IS2 Sealed Bearing Threadless 1.125 inch
DERAILLEURS	Shimano Ultegra 6800 11 Speed (22 Spd total) front and rear
SHIFTERS	Shimano Ultegra 6800
CRANK / BB	Shimano, FC-6800, Ultegra Double Hollowtech 2, 11- Speed, 46X36T W/bb(Bsa), Crank 170/172.5/175mm For 49-52/54-56/58-61cm
CHAIN	Shimano Ultegra 6800 11 Speed
CASSETTE	SHIMANO, CS-6800, ULTEGRA, 11-S, 11-12-13-14-16-18-20-22-25-28-32T
BRAKES	Avid BB7R,Mechanical Disc Brake, W/Int'l Std Mount, Rotor G2Cs 160mm
BRAKE LEVERS	Shimano ULTEGRA 6800 Brake/Shift STI 11 speed (22 gears total) AND Tektro RL570 Cross Top Levers on handlebar top section
WHEELS	Vuelta Team Sl 700C Alloy Blk W/O Cnc,H:27Mm , F/R:28/28H,W/Fv Team Sl.S Road Disc Wheelset
TIRES	CONTINENTAL Cyclocross Race (C281) Fold , 700x35C ( 35-622 ) 180TPI 700x28/32C INNER TUBES ( 0.73mm). W/FV 48mm
SEAT / POST	Ritchey PRO Streem road / Ritchey PRO 27.2mm x 300mm
BAR / STEM	Ritchey PRO Butted Aluminum Ergo Bar 31.8mm OS / Ritchey PRO Aluminum 1.125 inch steerer, 31.8mm OS clamp
PEDALS	n/a
EXTRAS	*Specifications subject to change to comparable specs without notice to meet production

Geometry

	Description	49cm	52cm	54cm	56cm	58cm	61cm	64cm
A	SEAT TUBE, CENTER TO TOP	49cm	52cm	54cm	56cm	58cm	61cm	64cm
C-2	EFFECTIVE TOP TUBE LENGTH	520	535	550	560	570	590	610
D	CHAIN STAY	430	430	430	430	430	430	430
E	BB DROP	67.0	67.0	67.0	67.0	67.0	67.0	67.0
F	FORK OFFSET	45.0	45.0	45.0	45.0	45.0	45.0	45.0
G	HEAD TUBE ANGLE	72.0	72.0	72.5	73.0	73.5	73.5	73.5
H	SEAT TUBE ANGLE	74.5	74.0	73.5	73.0	73.0	73.0	73.0
I	WHEEL BASE	962	972	979	985	996	1011	1022
J	STAND OVER HEIGHT	738	750	768	782	794	824	834
K	BB HEIGHT	283	283	283	283	283	283	283
L	Head Tube Length	95	105	115	115	135	165	170
